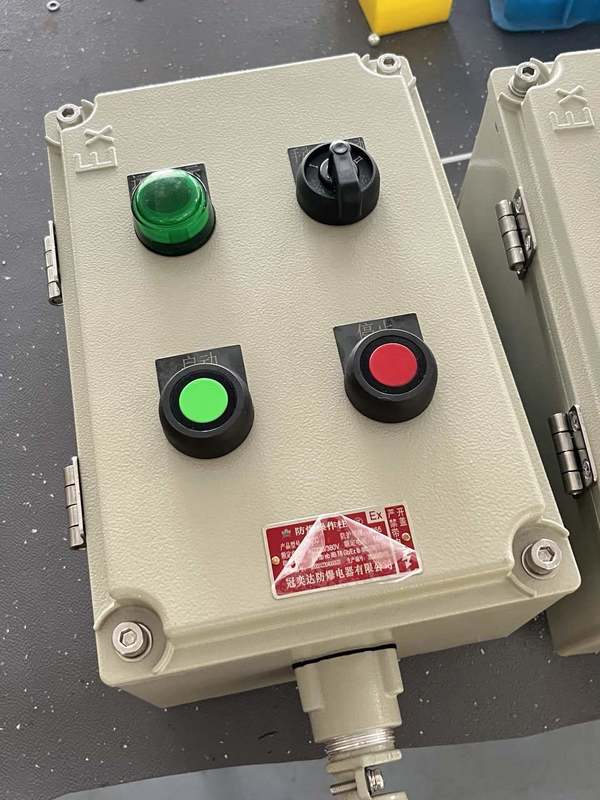

Explosion Proof Breaker Control Panel Cabinet 380V Flameproof Electrical Enclosure

Description:

1.The product has two type of Ex d (llB) and complex(llC ), complex type is consist of Ex e cabinet with explosion-proof components.

2.Inside equipped with MCB, MCCB Indicator Lamp, Pushbutton, ChangeoverSwitch, Ammeter, Voltmeter or customized instruments

3. It can be customized into box type, piano table and cabinet structure according to user requirements. The cabinet type is divided into upper and lower structure and left and right structure. The box type is generally welded by steel plate, the surface is sprayed, and the front door is operated; the table top and the cabinet type are welded by standard profiles, the surface is sprayed, and the joint surfaces are subjected to special sealing treatment; front door opening operation The structure of the explosion-proof distribution box of the rear door maintenance is an explosion-proof structure, the shell is welded by steel plates, and the surface of the casing is electrostatically sprayed

4. Its explosion-proof principle is mainly to use the explosion-proof measures of the medium isolation ignition source to achieve the purpose of electrical explosion protection

5.Explosion-proof distribution box adopts composite type and modular structure. Each circuit can be assembled freely according to requirements. The general switch box adopts explosion-proof structure, and the bus box and outlet box adopt increased safety structure.

Features:

1.Die cast aluminum or stainless steel housing

2.Built-in miniature circuit breaker or molded case circuit breaker

3.Overload, open circuit protection function, can increase leakage protection function is optional

4.This construction of the panel is a composite or isolated type. Composite type of the up enclosure is explosion proof and the down terminal enclosure is increased safety type.

5.With overload, short circuit protection, and the leakage protection, surge protectors function is optional;
