Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp

Sertifikasi
CINA crown extra lighting co. ltd Sertifikasi
CINA crown extra lighting co. ltd Sertifikasi
I 'm Online Chat Now

Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp

Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp
Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp

Gambar besar :  Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp

Detail produk:
Tempat asal: Jiangsu, Cina
Nama merek: Crown Extra
Sertifikasi: ATEX,CE,ROHS,CNEX,ISO9001
Nomor model: Bpy
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Harga: USD20-36 per pc
Kemasan rincian: Karton 、 Kotak Kayu 、 Pallet
Waktu pengiriman: 15 hari kerja
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 50000pcs/bulan

Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp

Deskripsi
Merek: Mahkota ekstra Nama Produk: Lampu Linier Tahan Ledakan/BPY
Perumahan: Aluminium Die-Cast Cri: RA: ≥70
Efisiensi: 100lm/w Bersertifikat: CNEX, EX, IP66, IEC, IECEX
CCT: 3000/4000/5000/5700K, suhu warna lainnya dapat disesuaikan Sudut balok: 120-140 °
Pemasangan: Plafon, Dinding, Flange, Liontin

Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp



BPY Series



Features:

1. Die casting aluminum shell, with high voltage electrostatic plastic-spraysurface.

2. Easy to change the tube, just remove the end cover to change.
3. Electronic ballast, improve the power factor largely, COS>0.95
4. Tempered glass lamp shade, stainless steel exposed fastener.
5. Steel pipe wiring or cable wiring




Applications


A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations




Standard Materials
Housing:
Die-cast aluminum
Exterior: Stainless steel
Globe:
Tempered glass





Certifications
ATEX
CNEX
CE
RoHS
ISO9001



Electrical Data
Ex Marking Ex d e IIC T6 Gb/ DIP A21 TA
Classification
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D; Zone 1, 2 & Zone 21, 22
IP Degree IP66
Corrosion Resistant WF1
Input Voltage
90-305VAC/50~60HZ or 24V DC
Battery Back-up Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s
Conduit Entries G 3/4"
Terminal ≤2.5mm2
Mounting Styles Pendant; Ceiling; Chain; Embedded; Wall; Stanchion




Ordering Information
Model NO.
BPY-I
BPY-II
BPY-III
T8Fluorescent tube
20Wat
30Watt
40Wat
T5 Fluorescent tube
14Watt
21Watt
28Watt
LED tube
8Watt
12Watt
18Watt

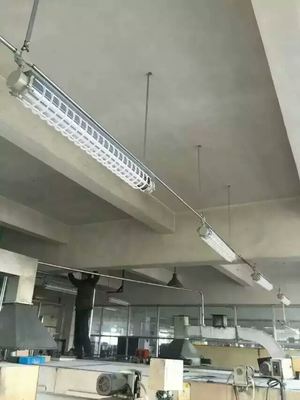

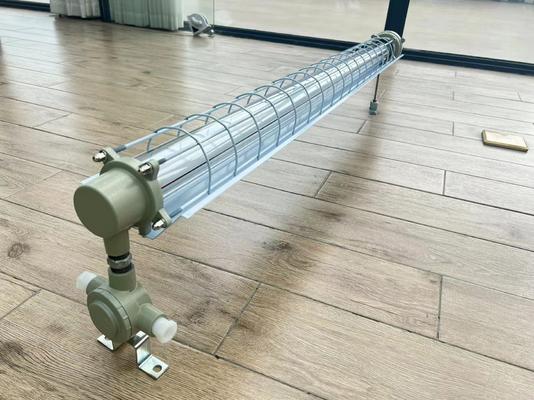

Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp 0
Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp 1


Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.




Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp 2Factory Sale Linear Led Explosion Proof Light for Hazardous Area Refinery 1.2m Led Linear Tube Lamp 3
