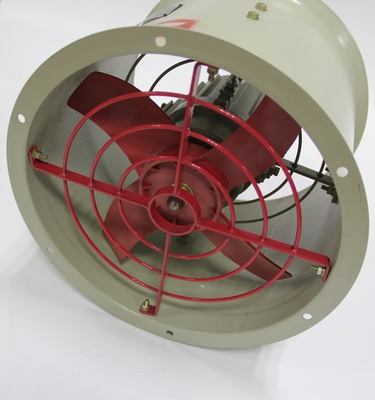

120W 12 Inch Low Noise Explosion Proof Industrial Ventilation Exhaust Fan IP54 WF2 Protection

2. With explosion-proof motor

3. Strong anti-corrosion ability

4. Multiple installation methods

5..Different impeller speed or motor power, air flow for choice

6.Air duct of explosion proof axial flow fan is formed by welding of quality steel plate, and the fan blades are cast in aluminum alloy and with high voltage plastic-sprayed surface.

7. Aestheetic appearance, integrated ong-body assemble frame, safe and secure, with damping device and low-operating noise.







Type	BFC
Ex rate	Ex d IIB T4 Gb
Degree protection	IP54
Rated voltage	220/380VAC
Size of blade[mm]	300, 400, 500, 600
power consumption[w]	120; 180; 250; 370
Air volume[m³/min]	2200; 2400; 4900; 9500



Power	120-750w
Ex Mark	Ex db IIC T4 Gb
Protection	IP54 WF1/WF2
RPM	1450r/m
CFM	2000-9500m³/h
Diameter	200-500mm
Mounting	wall



Type	A	B	C
BFC-300	350	292	280
BFC-400	480	388	280
BFC-500	590	466	280
BFC-600	710	525	310





Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
