Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation

Sertifikasi
CINA crown extra lighting co. ltd Sertifikasi
CINA crown extra lighting co. ltd Sertifikasi
I 'm Online Chat Now

Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation

Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation
Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation

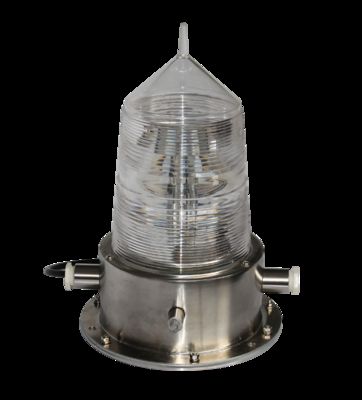

Gambar besar :  Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation

Detail produk:
Tempat asal: Jiangsu, Cina
Nama merek: Crown Extra
Sertifikasi: ATEX,CE,ROHS,CNEX,ISO9001
Nomor model: Gyzd
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: usd 90-270 per pc
Kemasan rincian: Karton 、 Kotak Kayu 、 Pallet
Waktu pengiriman: 15 hari kerja
Syarat-syarat pembayaran: T/T
Menyediakan kemampuan: 50000pcs/bulan

Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation

Deskripsi
Merek: Mahkota ekstra Model: Gyj
Jenis: Lampu penghalang tahan ledakan/GYZD Voltase: 220VAC, 24VDC
Intensitas: Rendah>200cd, Tengah>2000cd, Tinggi>20000cd Frekuensi berkedip: 20-60 kali/menit
Warna: Merah/transparan Bersertifikat: CNEX, EX, IP66, IEC, IECEX
Pemasangan: Dinding
Menyoroti:

custom red explosion proof obstruction light

,

20-60 times/min LED aviation light

,

airport explosion proof alarm light

Factory Custom red 20-60 Times/min explosion proof Obstruction light LEDAirport Explosion Proof Aviation
GYZD Series
Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation 0
Features
1. Aluminum alloy with epoxy resin powder sprayed for superior corrosionresistance
2. Ultra-bright LED lamp, low power consumption and long service life
3. Saves in energy, maintenance andinstallation costs
4. Solar panel is optional


Applications
A wide range of hazardous areas such as
oil refineries, chemical and petrochemical plants, offshore plants, onshore plants, oil loading jetties, military ect.
Tall buildings
Areas requiring high ingress protection and wet environment
Can be used in Zone 1, 2(gas) and Zone 21, 22 (dust)




Standard Materials
Housing:Die-casting aluminum/Stainless steel
Exterior:Stainless steel
Globe:Tempered glass
Gasket:Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001



Technical Data

Ex MarkingEx de IIC T6,DIP A20 TA,T6
ClassificationZone 1, 2 & Zone 21, 22
Input VoltageAC220V, 50Hz
IP DegreeIP66
Synchronized Flashing (Wireless)Optional
With solar panelOptional
Light colorRed/Transparent
Charging time24 hrs
Ambient temperature-40~+70




ModelGYZD81-IGYZD81-IIGYZD81-III
Effective Luminous Intensity
Low intensity
>200cd
Low intensity
>2000cd
Low intensity
>20000cd
Power consumption<8 W<40W<100 W
Light SourceLEDLEDXenon lamp
Flash Rate (flash per minute)20-6020-6016-60
Weight kg2.84.86.0


Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation 1
Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation 2
Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.
Custom Red 20-60 Times/min Explosion Proof Obstruction Light LED Airport Explosion Proof Aviation 3
